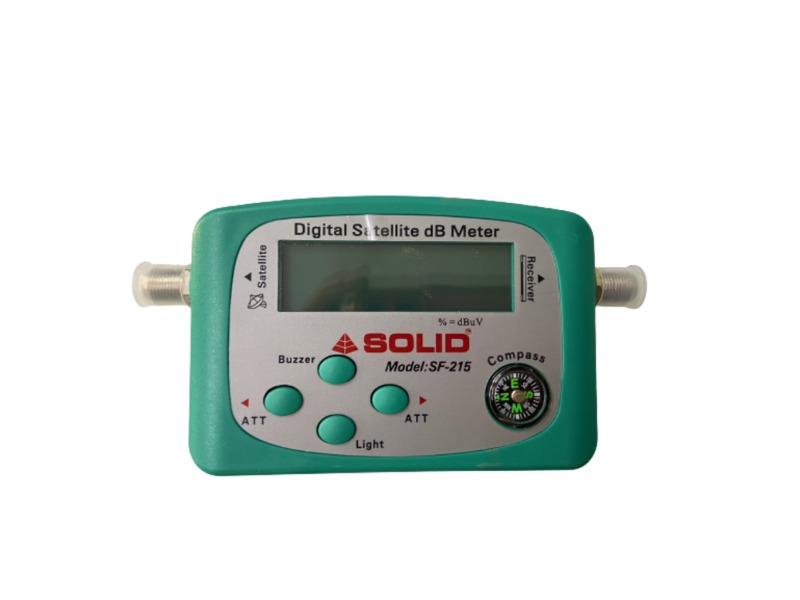

Solid SF-215 Digital Satellite dB Meter
SF-215 is a classic all-time favorite digital satellite dB meter for DTH Installation persons. It can find all DTH signals and positions. It is also backlit and buzzer sound so you can work at night as well.
Specification:
Input Frequency - 950 -2150 Mhz
input level min. - -40db
input level max. - -10dbm
input impedance - 75Ohm, F-connector
Output impedance - 75Ohm, F-connector
Power Supply - DC - 13-18V
Operating range (LNB gain) - 52-60db
How to connect:
1. connect a jumper cable from the LNB to the " Satellite" port on the digital Sat finder.
2. Connect the cable from your satellite receiver to the " Receiver" port on the digital Satfinder
-
Other Information:-
