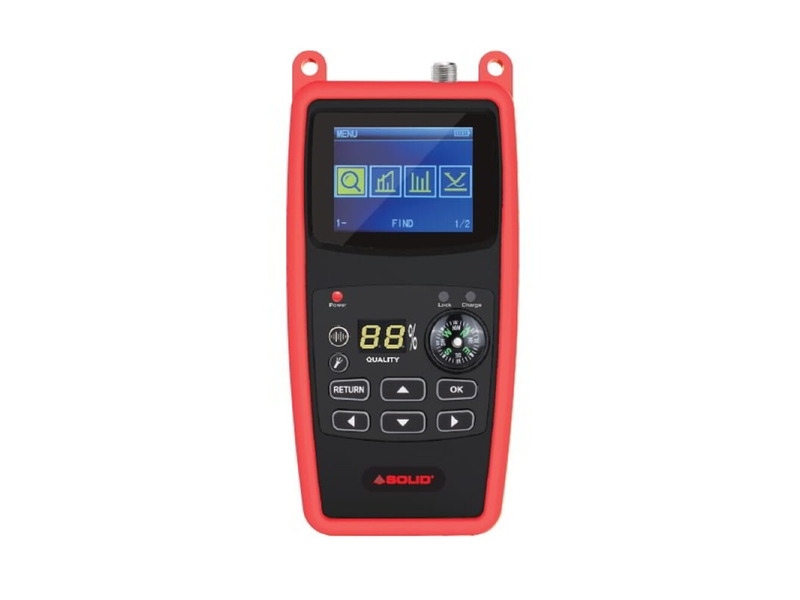

Solid SF-765 Digital Cable TV dB Meter

Delhi (NCT), IN ₹ 4,050.00

6 months ago ID #15988

Description

Solid SF-765 Digital Cable dB Meter

Cable TV Gain Measuring Instrument with MER+BER+Spectrum Analyzer

Features :

  • User-Friendly Interface
  • With AC/DC Power passes tester
  • Power, MER, BER & Channel lock-in display
  • 7.4V/2600 mAh Long Life Battery
  • Channel plan backup & Upgrade through USB
  • 8 Channel Tilt
  • Spectrum View Available
  • Self Calibration (Adjustment) of all, Single Channel Power, MER & Factory Reset Options.



Technical Specs :

  • Input Frequency: 45-1002MHz
  • Input Level: 78-20dBm
  • Power: DC12V 1000mA



Technical Specifications -

DVB-C

Frequency Range

45-1002MHz

Power Level

30-110d1311V

Modulation Type

16/32/64/128/2560AM

Demodulation T

DVB-C:EN 300 429

Bandwidth

6MHz,8MHz

SR

1.4-7.5Msps

Interface

RF Input

75 D. Type-F(f)

DC Adaptor

12V 1A

USB

USB port

Battery

Capacity

7.4V/2600mAh

Working Time

8 hours

Charging Time

5 hours

Other Specification

Dimension

175X85X40mm

Wei. ht

381.



Buy now - https://www.solid.sale/db-meters/sf-765-cable-tv-meter
